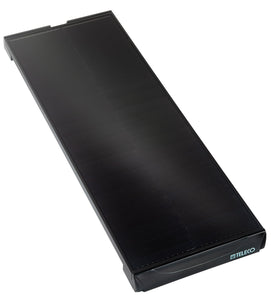

Black Mono-Crystalline Solar Panels - TELECO
Ref : T619944
DESCRIPTION :
PERC cell
(Passivated Emitter and Rear Cell), which, thanks to a dielectric cover on the rear side, exploit the reflection of light, improving the efficiency of the conversion.
THE KIT INCLUDES:
- the black solar panel
- a cable of 6 meters + feet
- a spoiler
- a narrow cable grommet
TECHNICAL DATA :
|
Technical characteristics |
TBS 110WS |
TBS 170WS |
TBS 185WS |
| Rated power (Pmax): | 110W | 170W | 185W |
| Rated voltage Pmax (Vmp): | 18.15V | 19.25V | 20.9V |
| Rated current Pmax (Vmp): | 6.06A | 8.83A | 8.85 A |
| Open circuit voltage (Voc): | 21.45V | 22.75V | 24.7V |
| Short circuit current (Isc): | 6.42A | 9.36A | 9.38A |
| Module efficiency (m): | 20.54% | 20.62% | 20.68% |
| Operating temperature : | -40°C ~ +80°C | -40°C ~ +80°C | -40°C ~ +80°C |
| Cable (length/section): | 900mm/2.5mm2 | 900mm/2.5mm2 | 900mm/2.5mm2 |
| Module dimensions (LxWxH) (without feet): | 1160x450x30mm | 1230x670x30mm | 1230x705x30mm |
| Weight (without feet): | 6.3 kg | 9.0 kg | 10.0 kg |
