TSP 130W TELECO SOLAR PANEL + ACCESSORIES KIT
Ref : T719735
The kit includes:
- 1 rigid solar panel 130W TSP
- 1 10A/12V charge regulator for one battery

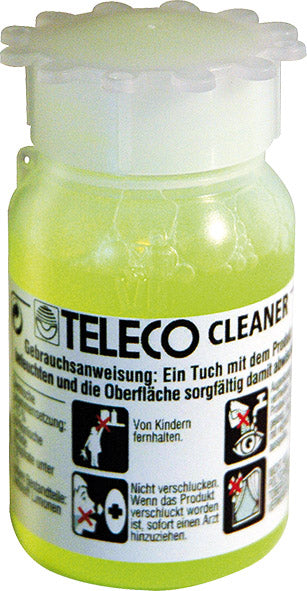

- 1 fixing kit (4 feet + screws + silicone glue + cleaning product)
- 1 aluminum SPCA/TSP cable gland
- 1 6m cable
- 1 spoiler
|
Technical specifications |
TSP 130W |
| Rated power (Pmax): | 130W |
| Rated voltage Pmax (Vmp): | 19.4V |
| Rated current Pmax (Vmp): | 6.71A |
| Open circuit voltage (Voc): | 23.4V |
| Short circuit current (Isc): | 7.12A |
| Module efficiency (m): | 16% |
| Maximum system voltage: | 1000VDC (IEC). |
| Application class: | Class A |
| Maximum surge: | 10A |
| Operating temperature: | 85% Rh -40°C ~ +85°C |
|
Rated temperature cell operation (NOCT): |
46 ± 2°C |
| Temperature coefficient at Pmax (Pmp): | -0.41%/°C |
| Temperature coefficient at VOC (Voc): | -0.31%/°C |
| Temperature coefficient at ISC (Isc): | +0.045%/°C |
| Top coating: | Tempered glass/3.2mm |
|
Monocrystalline cells (parts and dimensions) |
36 156x156mm |
| Frame: | - |
| Connection box (Protection rating): | IP65 |
| Cable (length/section): | 650mm/4mm2 |
| Connector (degree of protection): | IP65 |
| Module dimensions (LxWxH) (without feet): | 1065x670x35mm |
| Weight (without feet): | 7.8kg |
